gpuix-svelte
Write desktop apps in Svelte and render them straight into a native, GPU-accelerated window.
gpuix-svelte is a Svelte custom renderer for GPUI, the UI
framework behind the Zed editor, via @gpuix/native.

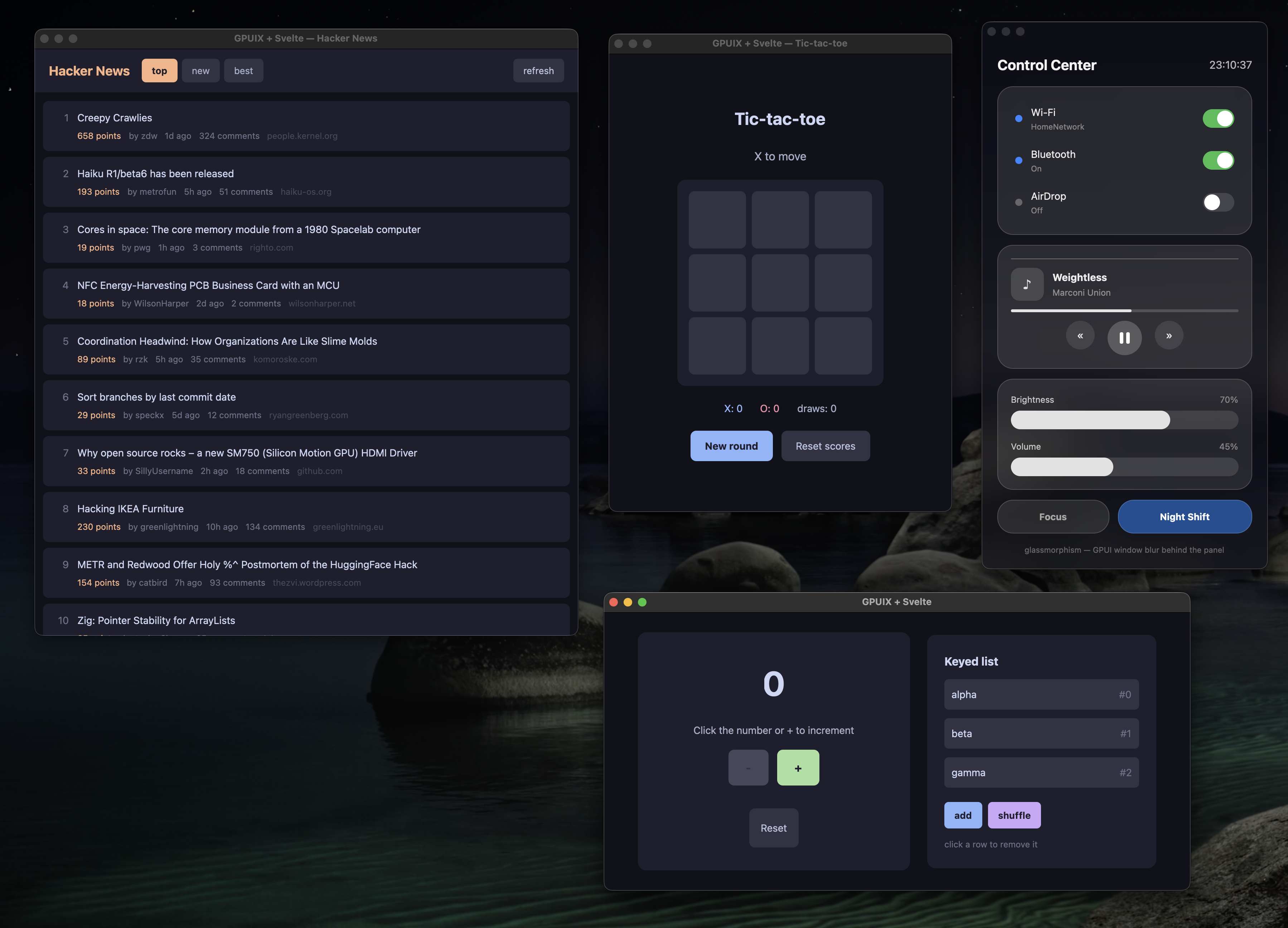

!Four gpuix-svelte demos running as native macOS windows
[!WARNING]
Experimental. This is built on Svelte's unreleased
custom renderer API, so every release of this
package ships the exact Svelte build it was tested against (see About the Svelte
version). Expect breaking changes between minor versions.
Quick start
npm create gpuix-svelte@latest my-app
cd my-app
npm install
npm start
A counter opens in its own window. Edit App.svelte and save — the window hot-reloads.
Requirements: Node.js >= 24 or Bun >= 1.4, on macOS (Apple Silicon), Windows (x64) or Linux
(x64). The GPUI binary comes prebuilt from npm, so npm install is the whole setup. With Bun,
bun create gpuix-svelte my-app then bun run start. Building standalone executables
(npm run build) requires Bun, whichever runtime you develop on.
What it looks like
<!-- App.svelte -->
<script lang="ts">
let count = $state(0);
</script>
<div class="app">
<text class="count">{count}</text>
<div class="btn" onclick={() => count++}>Add one</div>
</div>
<style>
.app { display: flex; flex-direction: column; align-items: center; gap: 16px; padding: 32px;
width: 100%; height: 100%; background-color: #1e1e2e; }
.count { font-size: 48px; color: #cdd6f4; }
.btn { padding: 12px 24px; border-radius: 8px; background-color: #313244; color: #cdd6f4; }
.btn:hover { background-color: #45475a; }
</style>
// app.ts
import { render_hot } from 'gpuix-svelte';
render_hot(new URL('./App.svelte', import.meta.url), { title: 'My app', width: 640, height: 480 });
npx gpuix-svelte app.ts # Node
npx gpuix-svelte --bun app.ts # Bun
Runes, snippets, {#each}, {#if}, {#await}, , .svelte.ts state modules
and scoped blocks all work as usual. Underneath is GPUI's element tree, painted on the
GPU, with the whole of Node or Bun (files, processes, SQLite, native addons) in the same process
as the UI.
Coming from Svelte on the web
The short list of what to know. Each links to the full story.
- Elements are GPUI's:
div,text,img,svg,input,textarea,code,markdown,
virtual-list, anchored and a few more. Other tags render as a div, with a warning.
![]()
takes a file path, a data: URL or an http(s) URL.
- Styling is CSS text for a flexbox layout in logical pixels. Lengths are
px; sizes
width, height, min-, max-) also take % and auto. blocks take class
rules with :hover and :active. Values GPUI can't use are dropped with a warning.
→ docs/styling.md
- Theming is
var(--token)in your styles plus oneset_css_vars({ token: '#fff' })call.
- Events go to the element under the pointer. Put
hitbox="self"on a clickable element and
onclick is the primary button; right and middle clicks are
onauxclick. → docs/styling.md (non-standard semantics)
- Inputs report through events whose payload carries the value:
(text = e.value)} />. {@attach} hands you the element.
→ docs/guide.md
- Keyboard shortcuts go through
on_window_key('keydown', handler), which hears every key
ScrollerandPortalship with the package: a scroll column with a drawn scrollbar
- Window and desktop APIs — title, fullscreen, file picker, file drops, images from raw pixels,
Documentation
| | |
|---|---|
| Styling | Every CSS property and value GPUI understands, what is dropped, theming with variables |
| Components | Scroller (incl. virtualised lists), Portal, and the native popover |
| Guide | Forms, keyboard and focus, window and desktop helpers, state that survives hot reload |
| Testing | Headless tests that click through GPUI's real hit testing, and screenshots |
| Shipping | Standalone binaries, signed macOS apps, and running in a browser via WebGPU |
The examples are the best reference for real code — see Examples.
Adding it to an existing project
npm install gpuix-svelte
gpuix-svelte brings its own Svelte, so it is the only dependency you add (see About the Svelte
version). Then run your entry through the package's bin, typically from package.json:
{
"type": "module",
"scripts": {
"start": "gpuix-svelte app.ts",
"test": "gpuix-svelte test.ts"
}
}
The bin starts Node (or Bun, with --bun or under bun run) with three things in place before
your entry loads: the custom-renderer module condition, which selects Svelte's client build with
the renderer API; the .svelte loader; and, on Node, tsx for TypeScript. Flags
before the entry go to the runtime (gpuix-svelte --experimental-ffi app.ts), arguments after it
to your script. Spelled out, it runs
node --conditions custom-renderer --conditions development --import tsx --import gpuix-svelte/register app.ts
bun --conditions custom-renderer --conditions development --preload gpuix-svelte/plugin app.ts
On Bun, preload = ["gpuix-svelte/plugin"] in a bunfig.toml replaces the --preload for ad-hoc
bun file.ts runs.
TypeScript
The package ships type declarations. Your tsconfig.json needs a paths entry pointing at the
Svelte build nested inside the package and, for the editor and svelte-check to type markup as GPUI elements rather than DOM ones, the gpuixHTML
namespace:
{
"compilerOptions": {
"module": "nodenext",
"strict": true,
"noEmit": true,
"customConditions": ["custom-renderer", "development"],
"types": ["node", "gpuix-svelte/html"],
"skipLibCheck": true,
"paths": {
"svelte": ["./node_modules/gpuix-svelte/node_modules/svelte"],
"svelte/": ["./node_modules/gpuix-svelte/node_modules/svelte/"]
}
},
"svelteOptions": { "namespace": "gpuixHTML" }
}
plus a *.svelte module declaration and a svelte.config.js that turns off Svelte's DOM
accessibility advice. starter/ has all three, ready to copy.
Event handlers take a GpuixEvent and {@attach} gets a ShadowNode, both exported as types:
<script lang="ts">
import type { GpuixEvent, ShadowNode } from 'gpuix-svelte';
</script>
Examples
Clone the repository to run them (npm install, then the command):
| | |
|---|---|
| npm run demo:counter | The counter, hot-reloading on save |
| npm run demo:tictactoe | Tic-tac-toe with score tracking |
| npm run demo:hn | Hacker News reader: live network data in a scrolling list |
| npm run demo:glass | A translucent control center over macOS vibrancy (demo:glass-ffi: real Liquid Glass via FFI, macOS 26+) |
| npm run demo:styling | Which CSS reaches GPUI and which is dropped, side by side |
| npm run demo:desktop | Window controls, file picker and drops, live image pixels, selection, focus, accessibility |
| npm run demo:web | Tic-tac-toe in a browser on GPUI's WebAssembly build (Bun) |
| npm run tutorial | A 12-step interactive guide to the renderer, itself a gpuix-svelte app |
Every command also runs on Bun under a bun: prefix (npm run bun:demo:counter).
About the Svelte version
Custom renderers live on an open Svelte pull request that moves on its own schedule. So each release
of this package bundles the exact build of that pull request it was tested against, inside
node_modules/gpuix-svelte/node_modules/svelte, and its loaders resolve every svelte import —
yours, the compiled components', its own — to that copy.
In practice:
gpuix-svelteis your one dependency; the Svelte you import is the one it brings.- Upgrading
gpuix-sveltemay move the Svelte build underneath you, so read the changelog before
svelte-checkand editor plugins read types from the registry's Svelte, which is what checking
Good to know
- Scrollbars come from
Scroller, and context menus are drawn by the app: aplaced at
onauxclick coordinates.
left,top,rightandbottomtake pixels; a progress bar's fill sizes withwidth: 50%.takes itscolorfrom the nearest ancestor's style, copied over by the renderer; give
itself.
- Headless tests run on macOS and Windows.
- Standalone binaries and web bundles are built with Bun, from a script modelled on the
How it works
Svelte's custom renderer API hands the renderer DOM-shaped operations — create an element, insert it before an anchor, set an attribute, add a comment node. GPUI's tree is flat, keyed by numeric id, and holds elements and text. gpuix-svelte keeps a lightweight shadow tree in JavaScript and projects it onto GPUI: only elements and non-empty text get native nodes, created lazily once they are attached to the window, and every change in a frame is queued and shipped as one batch, applied by Rust before the next paint.
Around that sit a .svelte loader for Node (module.registerHooks) and for Bun (Bun.plugin),
which compile components with the renderer baked in and turn blocks into class rules; a
CSS-text-to-GPUI-style translator that expands shorthands and drops what GPUI would reject; a
~125 fps frame loop; and in-process hot reload. The full design notes are in
CLAUDE.md.
Contributing
See docs/contributing.md for running the demos and tests, moving the vendored Svelte build, and how releases are cut.
License
MIT
